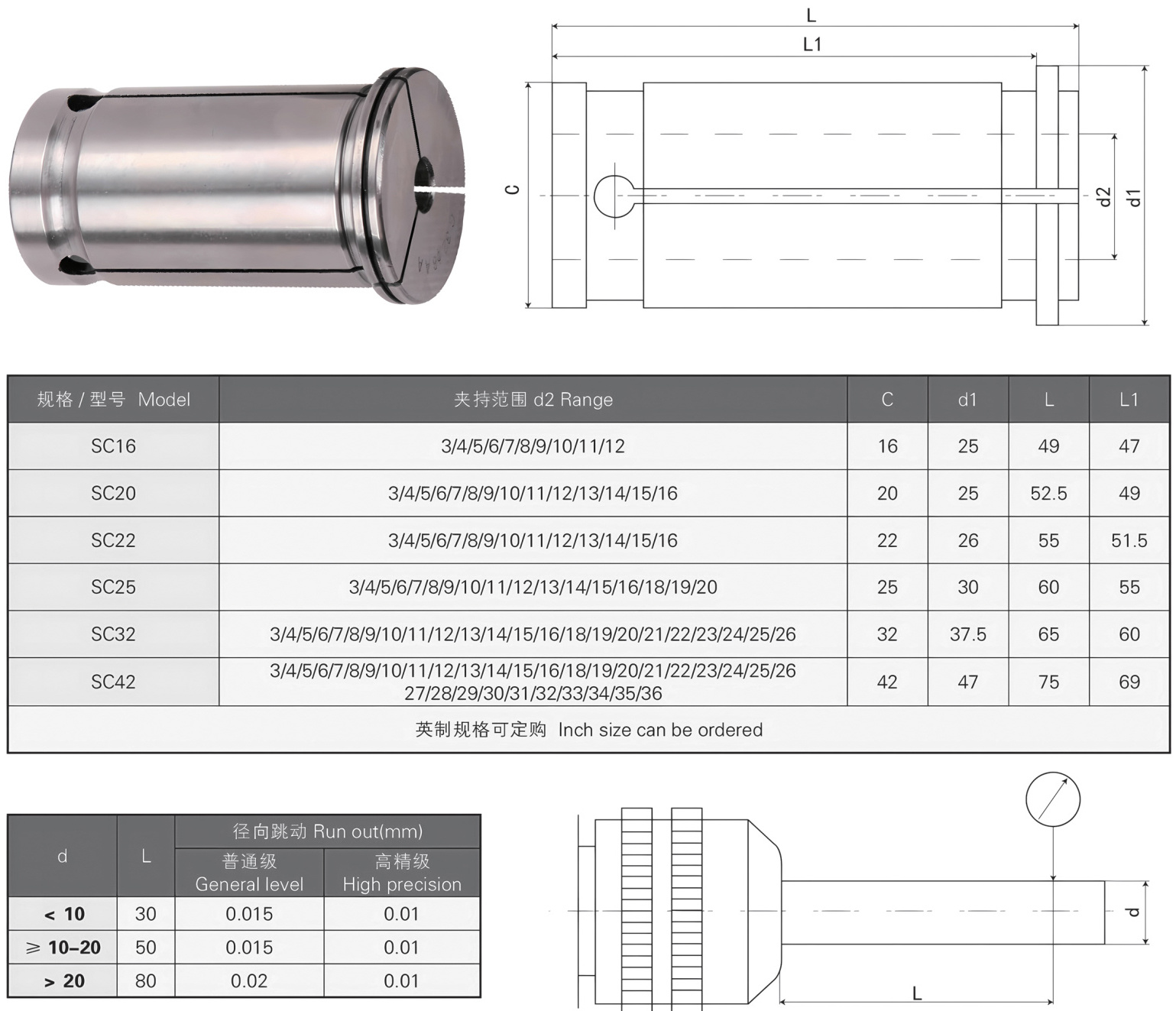

C STRAIGHT COLLET
OMaterial:SUJ-2.
O Hardness:HRC44-48
O Precision:< 0.01mm
O Definition clamp and aperture same shank of tool diameter. The collet does not have the elastic contraction scope,the emphasischucking power.
O In the cutting tool posts the collet to surpass the hole effective clamplength,achieves the effective clamp.
O There are two dinds of classes for precision:High precision0.01mm,General level0.015mm.
O Please inform the required precision when ordering!
Classification:
- Details
-
● C STRAIGHT COLLET

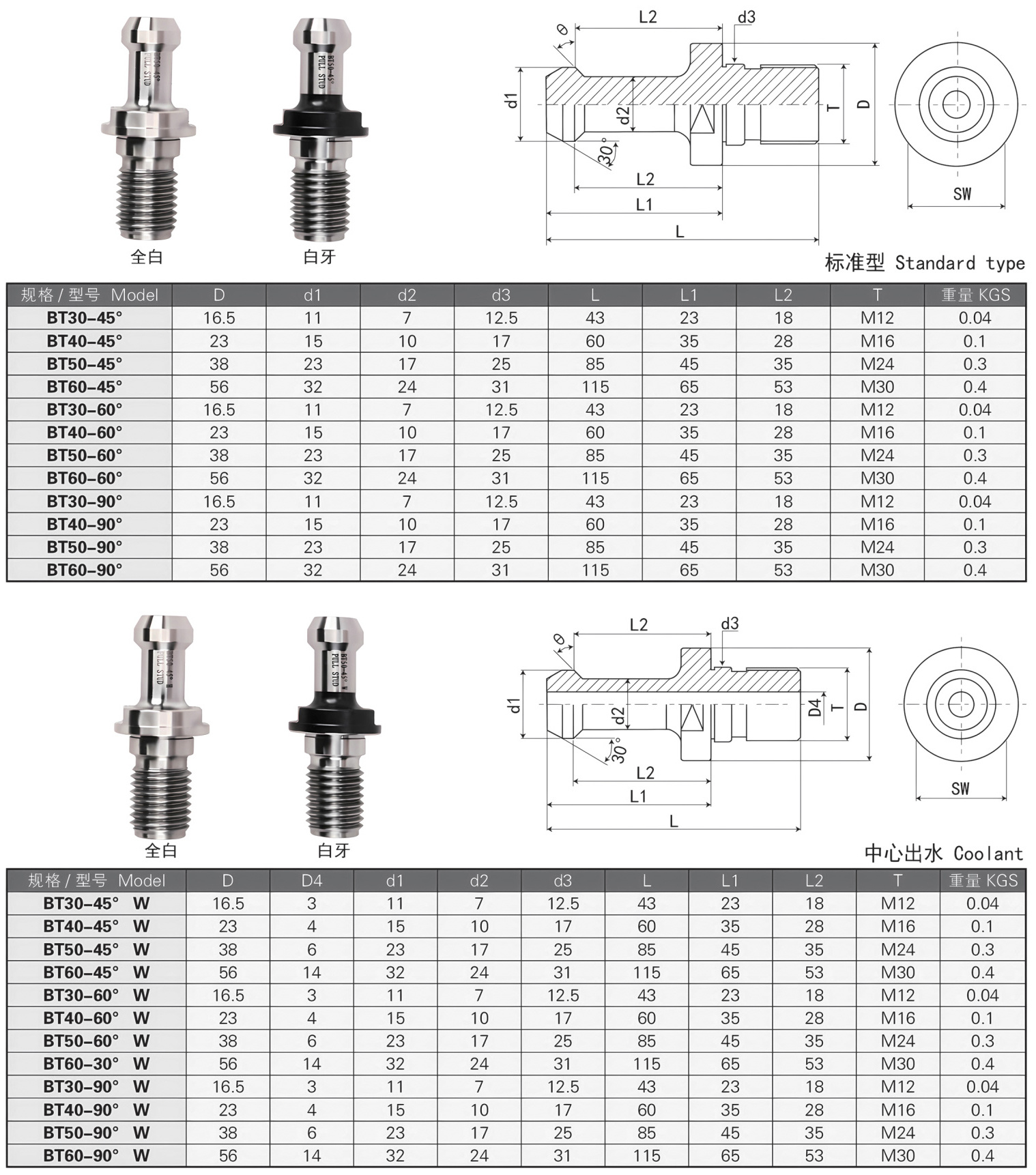

● 日本标准拉钉MAS 403-1975
普通级拉钉
◎材质:40Cr
◎头部硬度:46-50HRC
◎螺纹及其它部位硬度较低:35±5HRC，(保护柄螺纹，核心硬度可以抵御冲击)
◎精度:0.02
高精度加硬拉钉
◎材质:20CrMnTi
◎头部硬度:55-58HRC
◎螺纹及其它部位硬度较低:35±5HRC，(保护柄螺纹，核心硬度可以抵御冲击)
◎精度:0.01
◎订购时请告知所须精度等级
● C STRAIGHT COLLET
● 日本标准拉钉MAS 403-1975
普通级拉钉
◎材质:40Cr
◎头部硬度:46-50HRC
◎螺纹及其它部位硬度较低:35±5HRC，(保护柄螺纹，核心硬度可以抵御冲击)
◎精度:0.02
高精度加硬拉钉
◎材质:20CrMnTi
◎头部硬度:55-58HRC
◎螺纹及其它部位硬度较低:35±5HRC，(保护柄螺纹，核心硬度可以抵御冲击)
◎精度:0.01
◎订购时请告知所须精度等级
