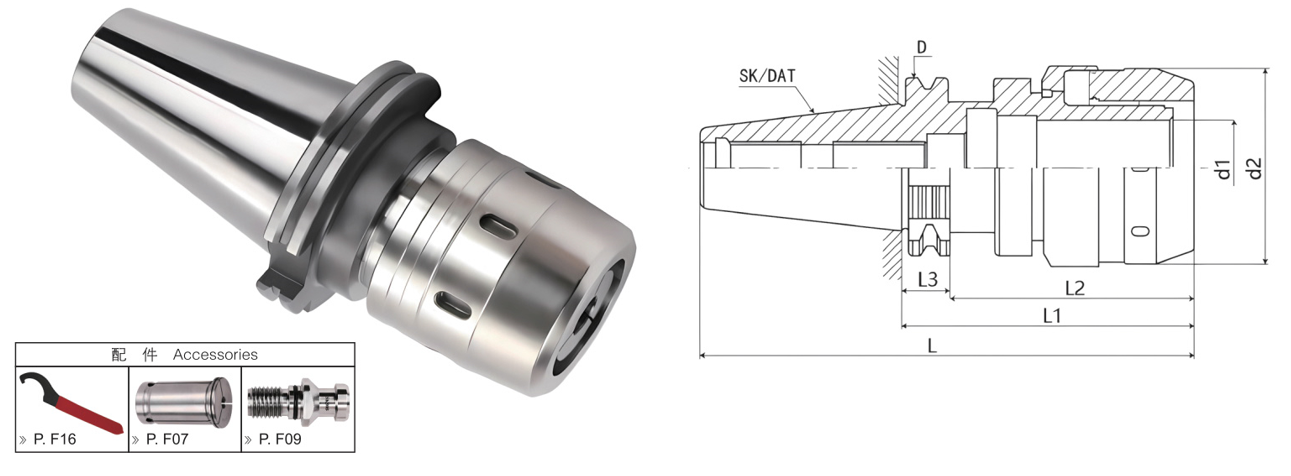

SK-C FORCE MILLING CHUCK
High speed, high accuracy, high durability C-STRAIGHT TOOL SERIES
OMaterial:20CrMnTi/15CrMn;
O Hardness:HRC58-60，Carbon depth > 0.8
O Tolerance class: AT3
O Inner hole of the shank divide into 6 troughs to prevent the insert remove,increase the grasp force
O Ball bearing cage is made of special material, improve the endurance.enhance the grasp force
O Grasp force strong, centering accuracy high, suit to heavy cutting
O Two kinds looks provide:polishing or chemical nickel-plating processing; Inner hole grinding for many times, so as to reach Ra0.4, has a mirroreffect;
O End and the cylindrical are grinding for many times,can reach Ra0.4，has amirror effect;
Surface "environmental protection”, special coating surface treatment,improve the hardness and endurance of the
O surface, cleaness better, accuracystable, surface more smooth, antirust, feel comfortable, appearance nice.
O The spanner、pull stud chuck must purchase alone.
Classification:
- Details
-
SK-C FORCE MILLING CHUCK
SK-C FORCE MILLING CHUCK
Metki:
HSK knife handle 、 Steel release
