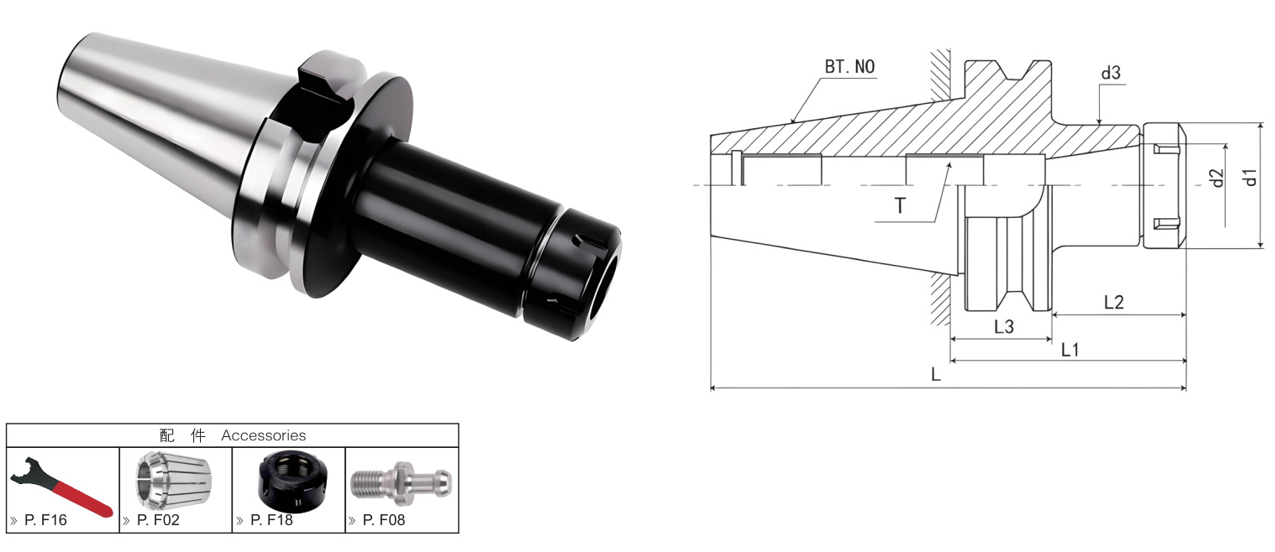

BT-ER COLLET CHUCK

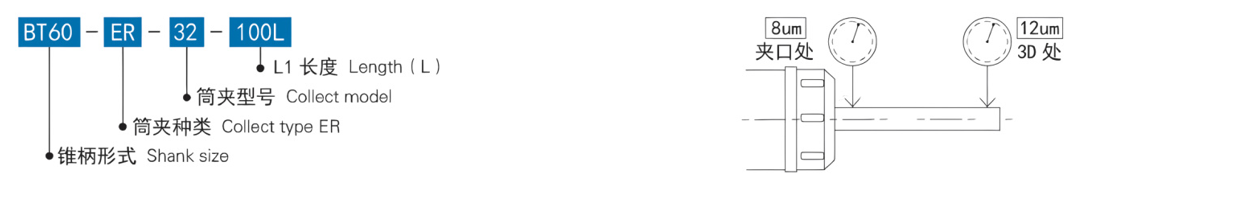

O Spindle conicity standard:JIS MAS 403 BTER collet chuck set with
O ER collet with flexibility used forgripping cutting tool, drill bit, draw bolt and so on.

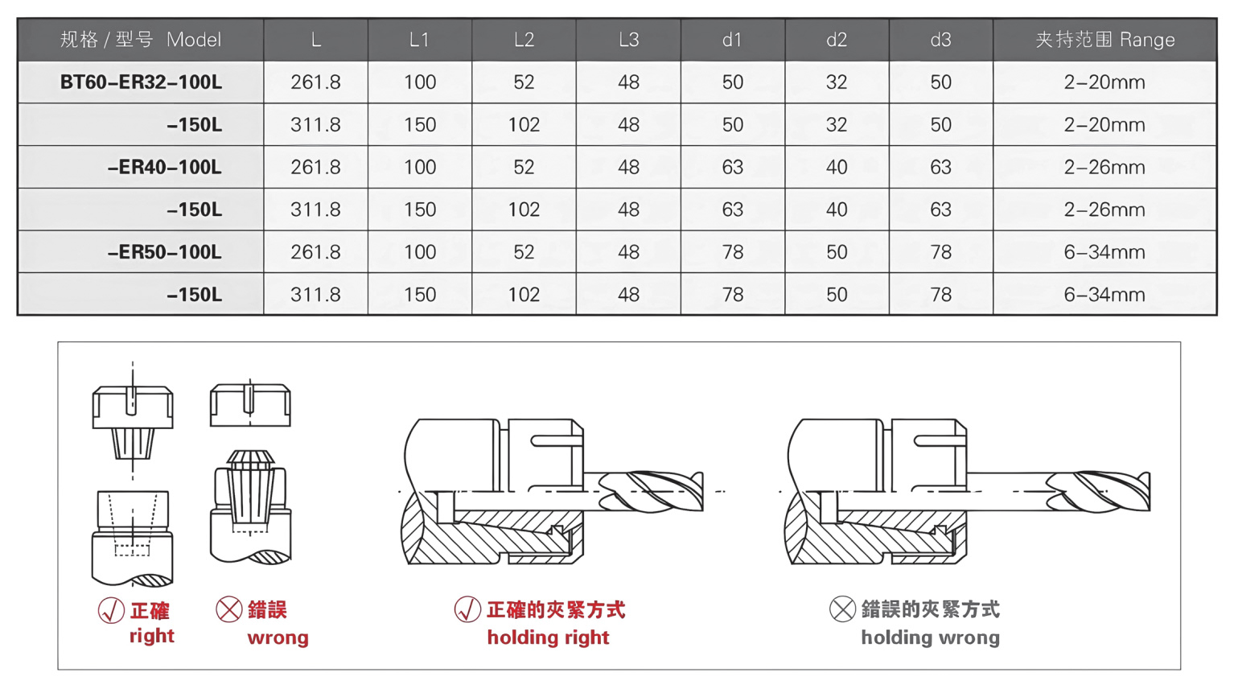

O When using, nut should be clamped tensed firstly with cuttingtools then locked into the main body.
O Always use the recommended wrench or spanner, unless, theremight cause damage of cutting tools
O The spanner、pull stud chuck must purchase alone
Classification:
- Details
-
BT30-ER COLLET CHUCK

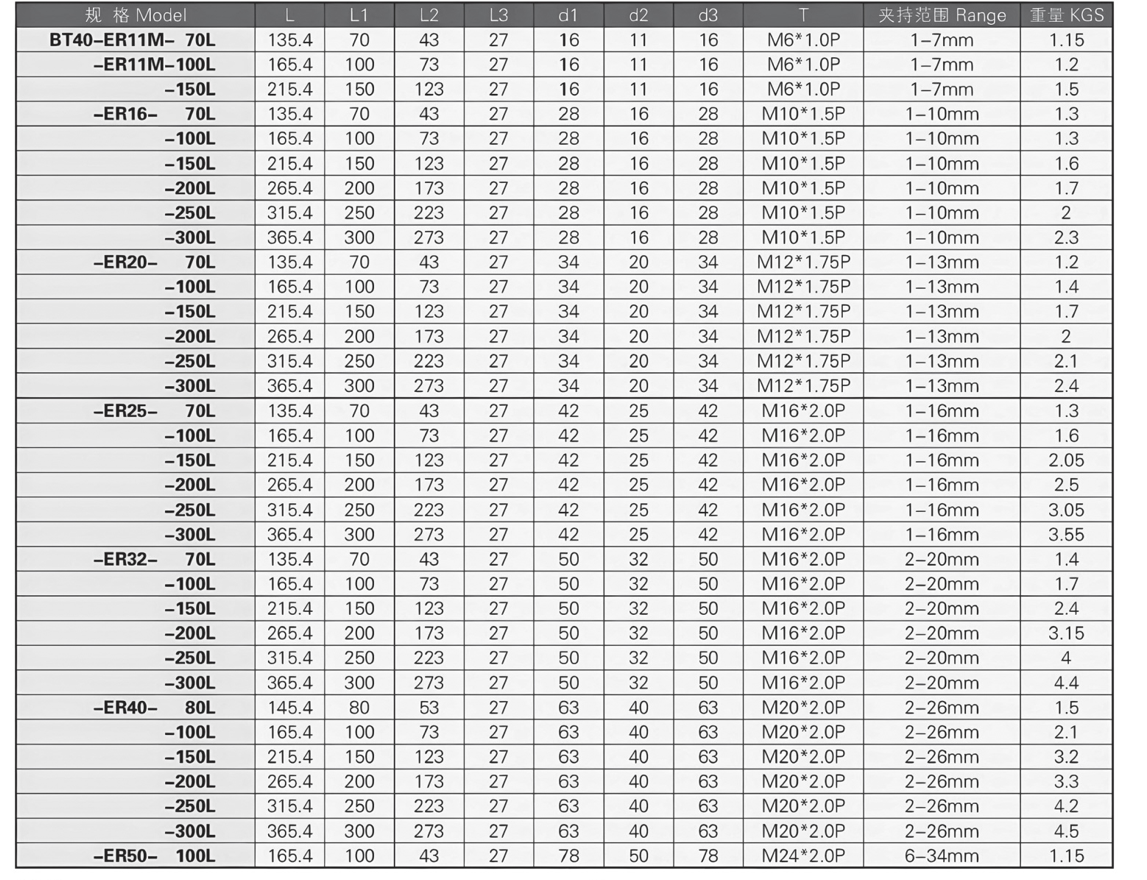

BT40-ER COLLET CHUCK

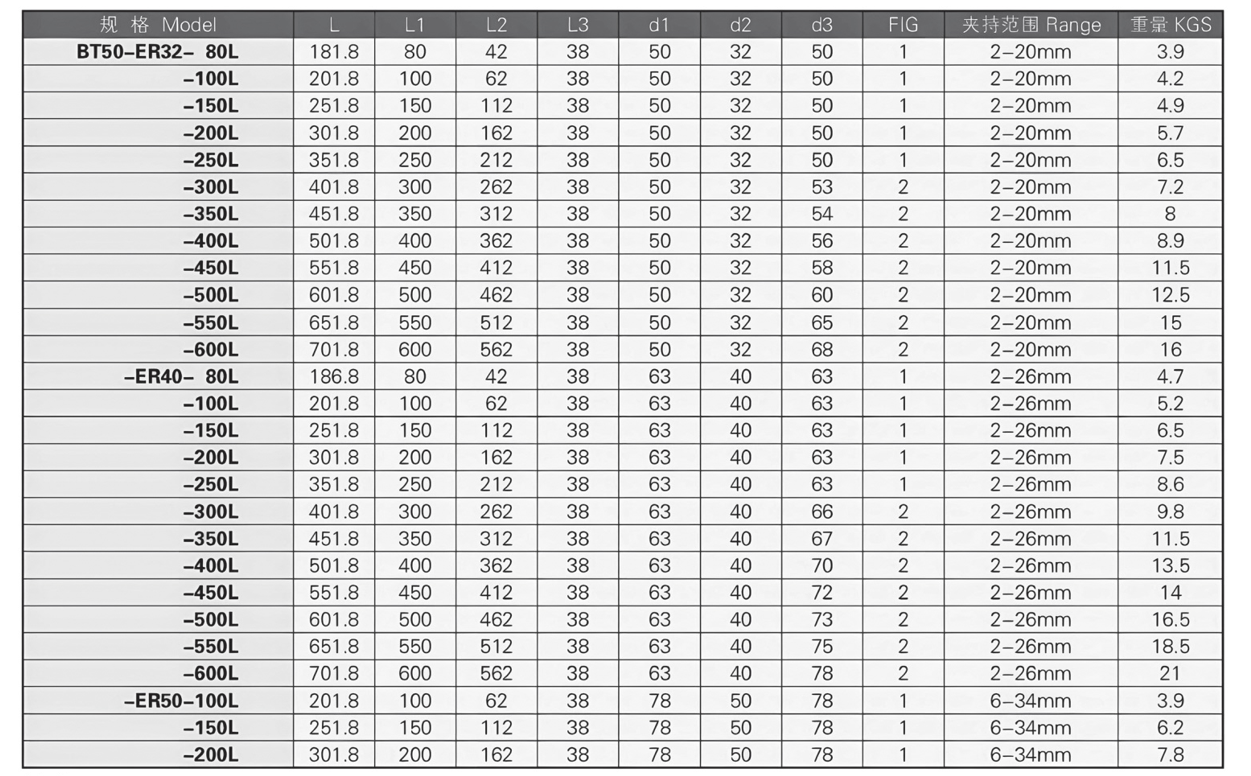

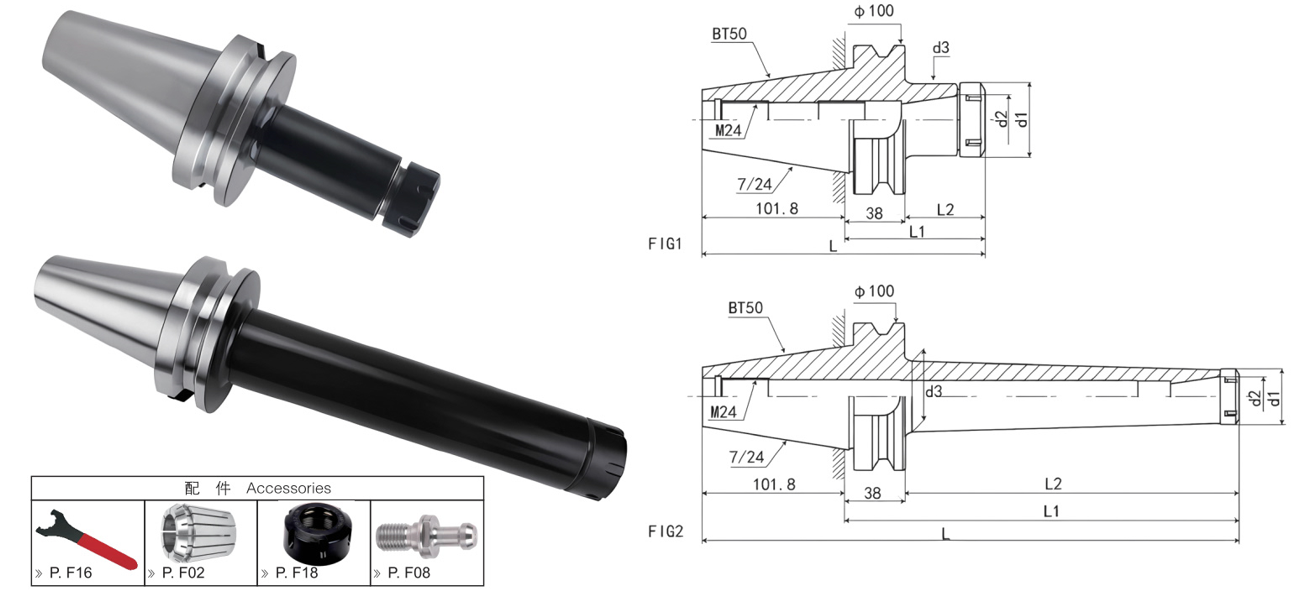

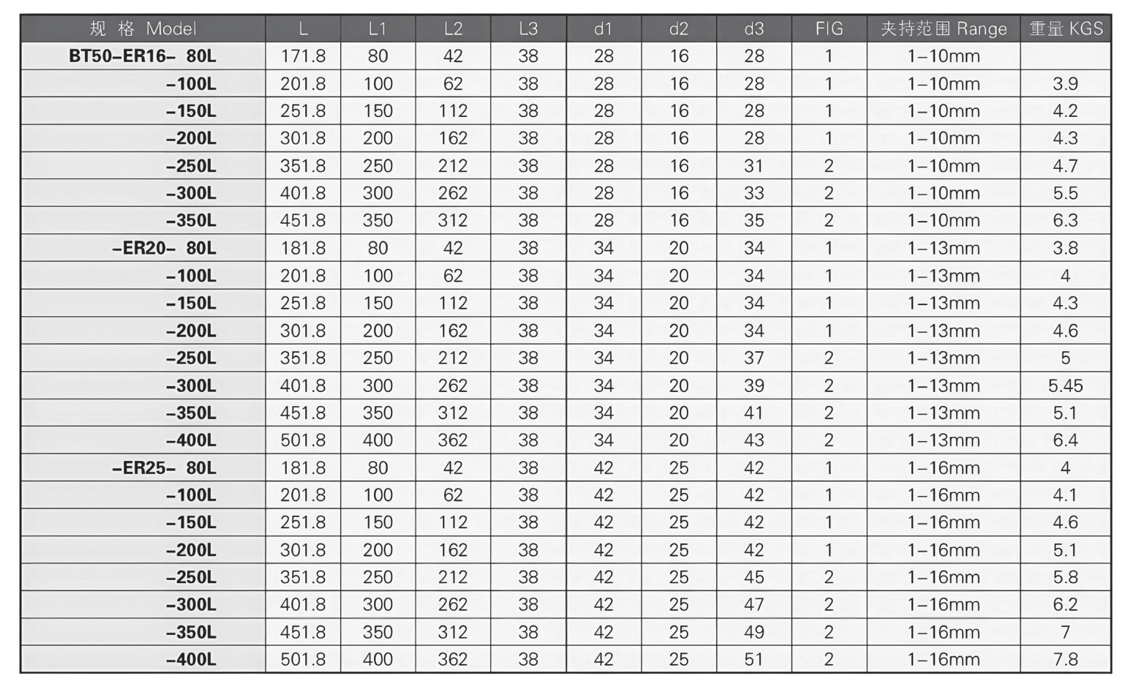

BT50-ER COLLET CHUCK
BT50-ER COLLET CHUCK
BT60-ER COLLET CHUCK
BT30-ER COLLET CHUCK
BT40-ER COLLET CHUCK
BT50-ER COLLET CHUCK
BT50-ER COLLET CHUCK
BT60-ER COLLET CHUCK
Metki:
HSK knife handle 、 Steel release
