BT-C FORCE MILLING CHUCK
High speed, high accuracy, high durability C-STRAIGHT TOOL SERIES
O Material:20CrMnTi/15CrMn;
O Hardness:HRC58-60，Carbon depth > 0.8 O Tolerance class: < AT3O Inner hole of the shank divide into 6 troughs to prevent the
O insert remove,increase the grasp force
O Ball bearing cage is made of special material, improve the enduranceenhance the grasp force
O Grasp force strong, centering accuracy high, suit to heavy cutting
O Two kinds looks provide:polishing or chemical nickel-plating processing;
O Inner hole grinding for many times, so as to reach Ra0.4, has a mirroreffect;
O End and the cylindrical are grinding for many times, can reach Ra0.4,has a mirror effect;
O Surface "environmental protection", special coating surface treatment,improve the hardness and endurance of the surface, cleaness betteraccuracy stable, surface more smooth, antirust, feel comfortable, appearancenice.

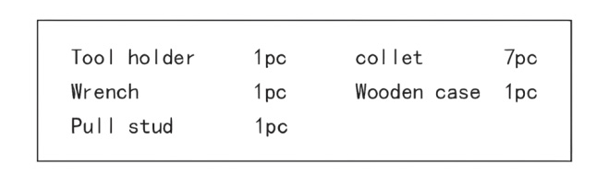

O The spanner、 pull stud chuck must purchase alone
