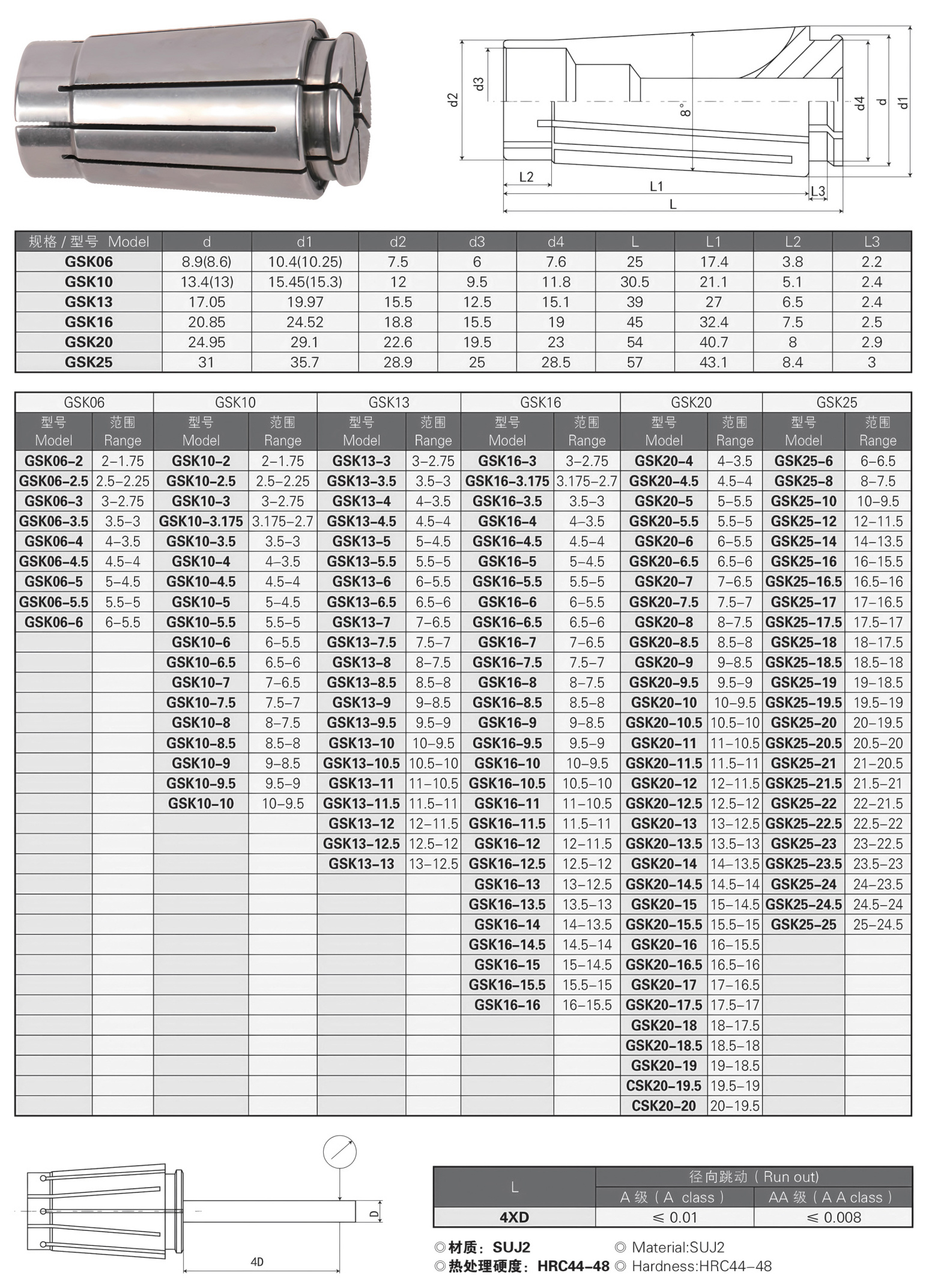

GSK HIGH SPEED COLLET SERIES

O Material:SUJ-2. O Hardness:HRC44-48 O Precision:≤ 0.01mm O Definition clamp and aperture same shank of tool diameter. O The collet does not have the elastic contraction scope,the emphasischucking power. O In the cutting tool posts the collet to surpass the hole effective clamplength,achieves the effective clamp. O There are two dinds of classes for precision:High precision0.01mmGeneral level0.015mm. O Please inform the required precision when ordering

Classification:

  • Details
  • ● GSK HIGH SPEED COLLET SERIES

    1



    O-185C long cryogenic,nearly of the residual austenite into martensite.

    O Carbide precipitation of Nanoscale particles,increasing the hardness and
    toughness
    O Reducing residual stresses
    O Wear resistance significantly improved

    O Thermal aging processing>100h long stereotyped thermal limitation removal of grinding residualstress.



    1

● GSK HIGH SPEED COLLET SERIES

1



O-185C long cryogenic,nearly of the residual austenite into martensite.

O Carbide precipitation of Nanoscale particles,increasing the hardness and
toughness
O Reducing residual stresses
O Wear resistance significantly improved

O Thermal aging processing>100h long stereotyped thermal limitation removal of grinding residualstress.



1
