ER COOLANT COLLET
Classification:
- Details
-

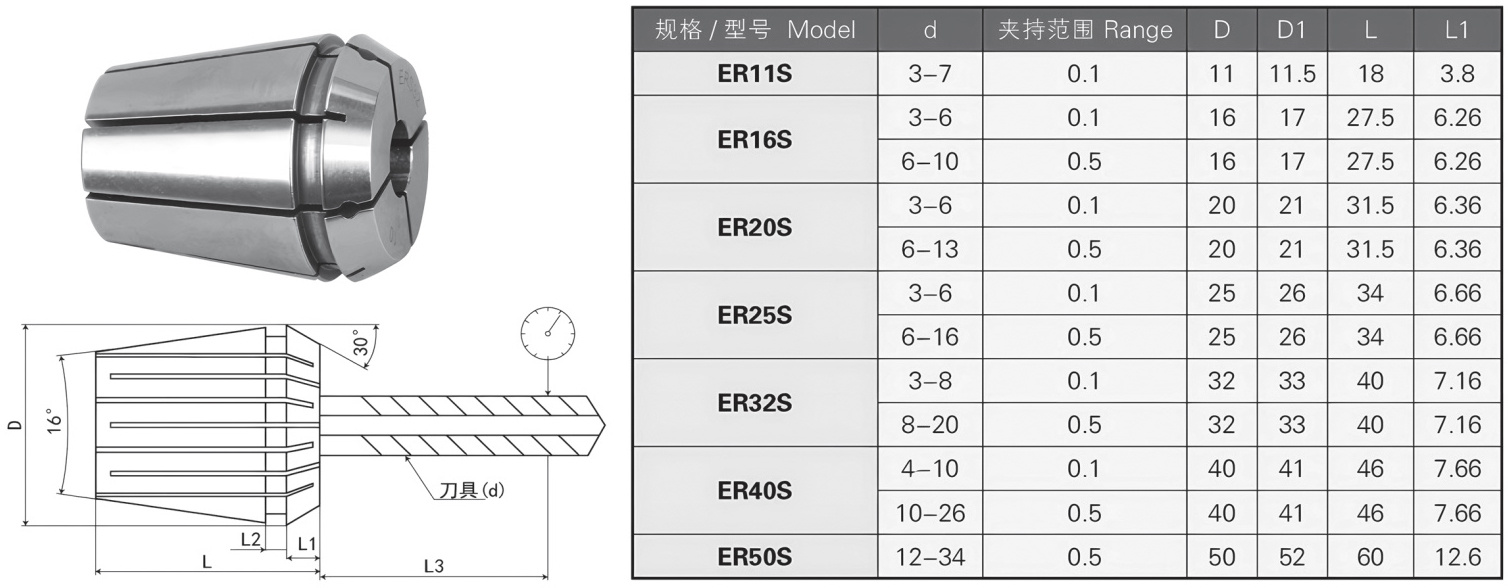

● ER COOLANT COLLET

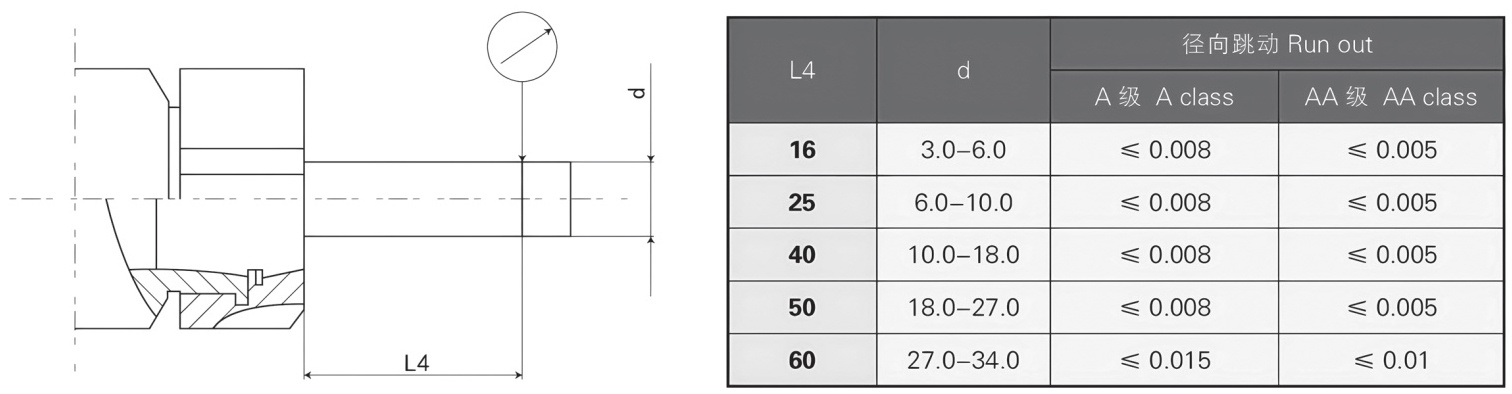

● INSPECTION OF ACCURACY
O Take use of the difference of flute and the use of sealed ring to attainsurrounding coolant and provide center as water outlet.
O Useful to chuck cutting tools with water outlet
O Can bear the water pressure up to 21 kgf/cm2
O No flexibility(NO flexible chucking range.lt depends on the biggestchucking range). Non-standard type,such as inch type or decimal type,are welcomed toorder.
O The ER part of the product is according to DIN-6499.It can be usedwith suitable tool holders.
● ER COOLANT COLLET
● INSPECTION OF ACCURACY
O Take use of the difference of flute and the use of sealed ring to attainsurrounding coolant and provide center as water outlet.
O Useful to chuck cutting tools with water outlet
O Can bear the water pressure up to 21 kgf/cm2
O No flexibility(NO flexible chucking range.lt depends on the biggestchucking range). Non-standard type,such as inch type or decimal type,are welcomed toorder.
O The ER part of the product is according to DIN-6499.It can be usedwith suitable tool holders.
