HSK-ER COLLET CHUCK
O Nut for pre-set dynamic balance nut.
O The whole through hole is favorable for water and shock resistance
O When installed, the collet must be loaded into the nut, and then into thetool, and then into the body and lock.
O The tool into the collet hole, must go beyond the collet hole effectiveclamping length, to avoid damage caused by improper fastening.
O Collets and wrenches and pull studs need to be ordered separately.
O Standard hexagon nuts for ER16 / ER20.You can also choose M-typenut, the body need to order another.
O Can be based on customer needs to accurately balance to G6.3 15000RPM,G2.5 30000RPM.
Classification:
- Details
-
● HSK-32A-ER COLLET CHUCK
● HSK-40A-ER COLLET CHUCK

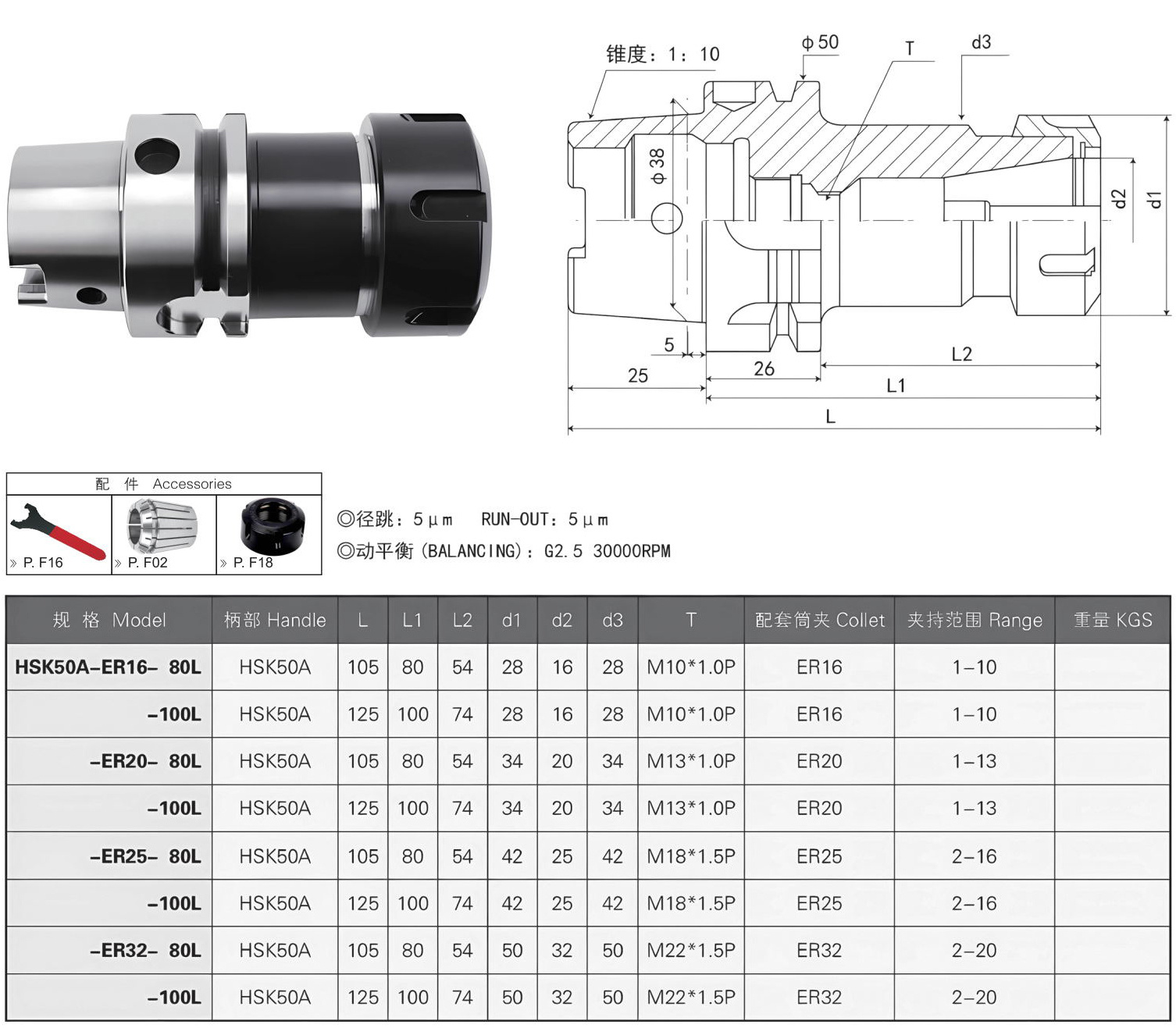

● HSK-50A-ER COLLET CHUCK

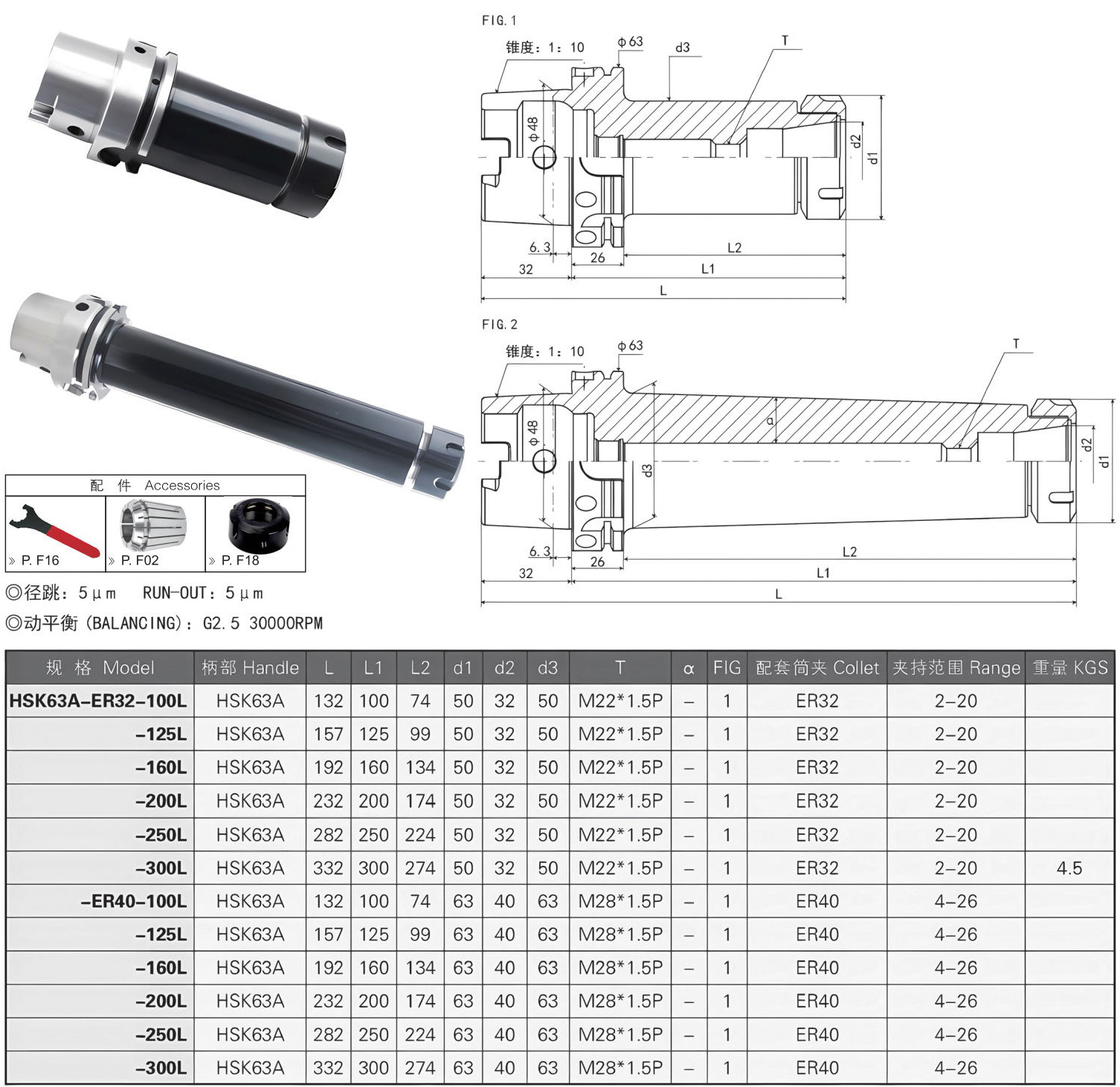

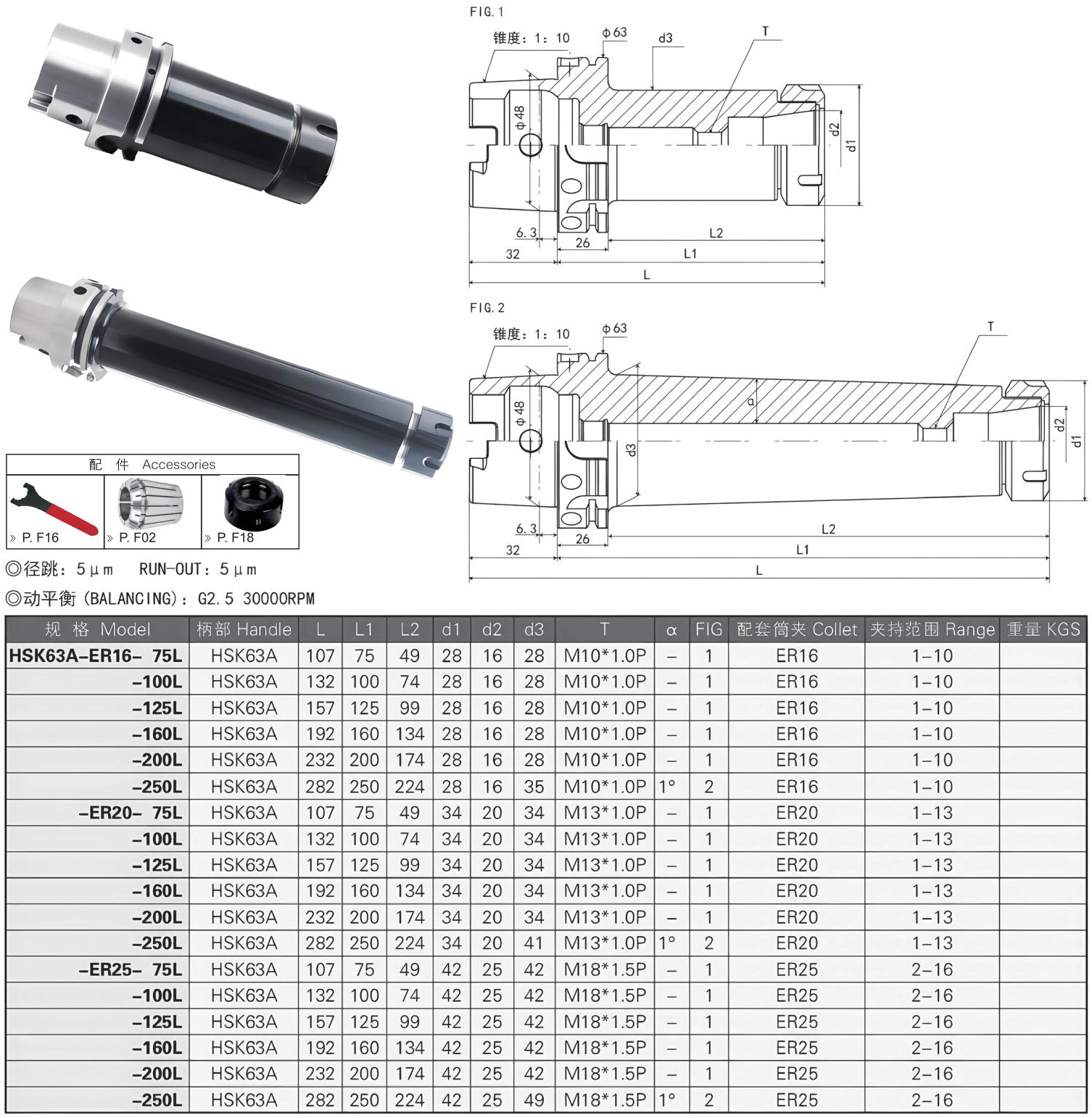

● HSK-63A-ER COLLET CHUCK
● HSK-63A-ER COLLET CHUCK

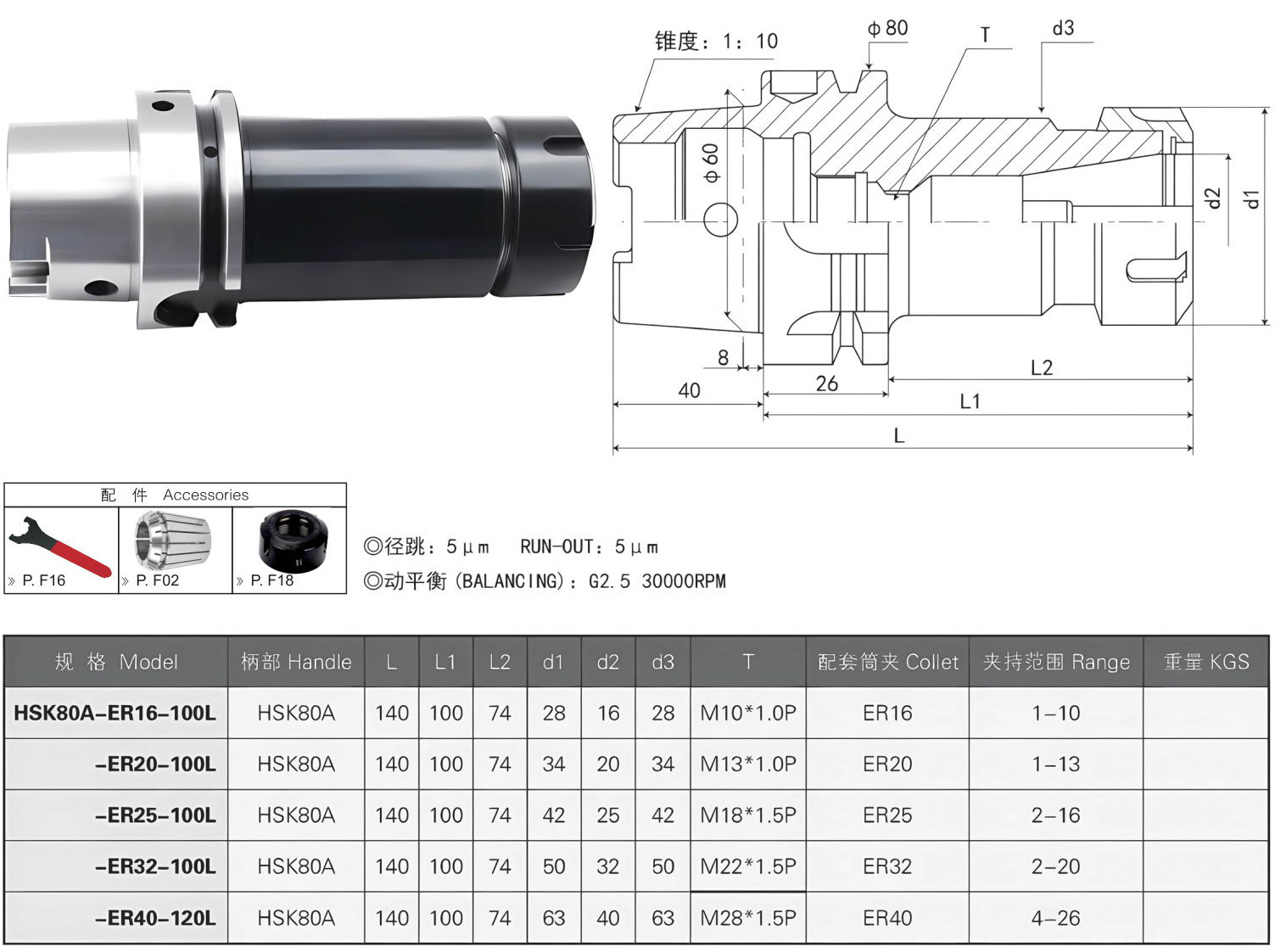

● HSK-80A-ER COLLET CHUCK

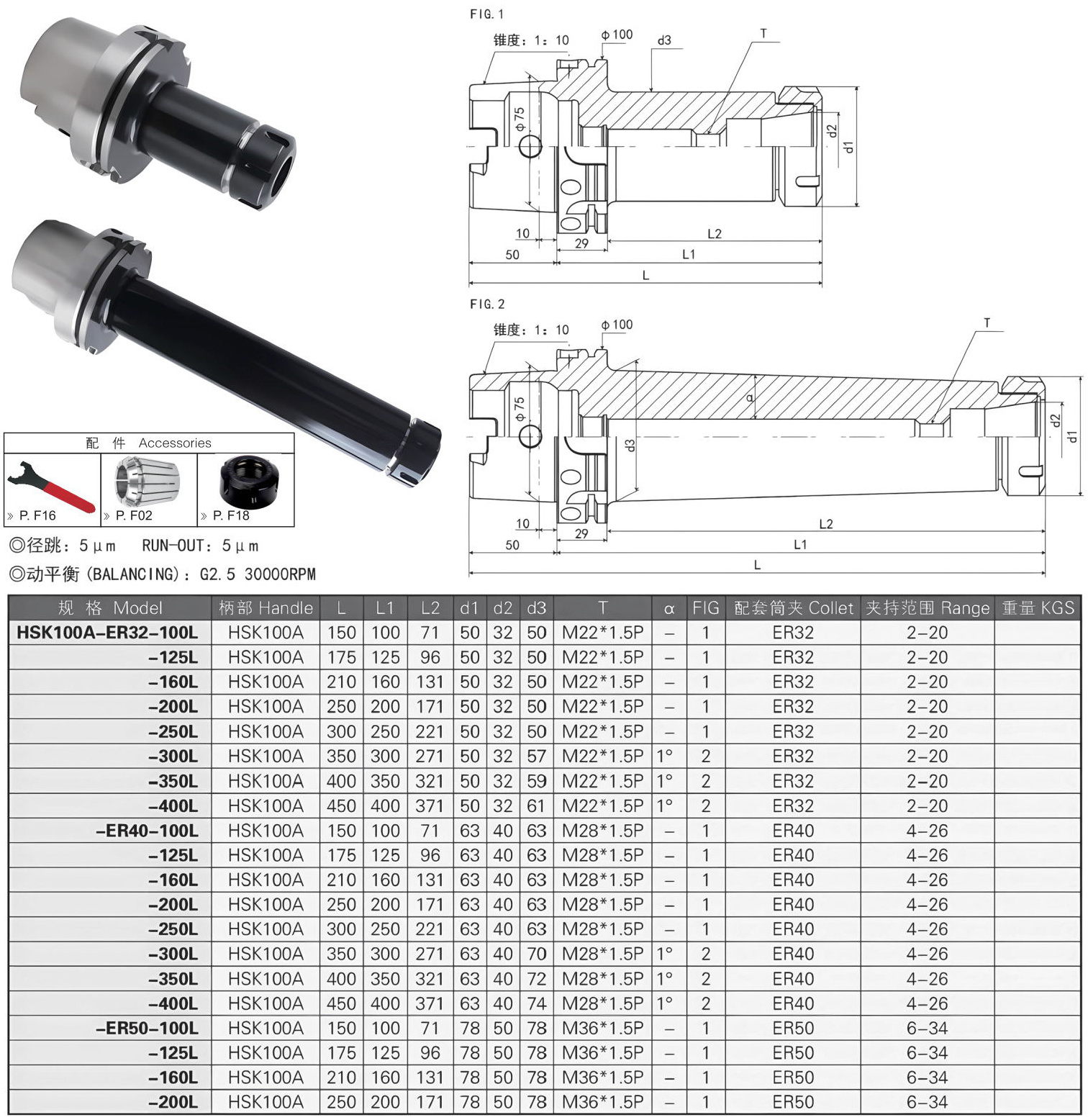

● HSK-100A-ER COLLET CHUCK
● HSK-100A-ER COLLET CHUCK
● HSK-32A-ER COLLET CHUCK
● HSK-40A-ER COLLET CHUCK
● HSK-50A-ER COLLET CHUCK
● HSK-63A-ER COLLET CHUCK
● HSK-63A-ER COLLET CHUCK
● HSK-80A-ER COLLET CHUCK
● HSK-100A-ER COLLET CHUCK
● HSK-100A-ER COLLET CHUCK
Metki:
HSK knife handle 、 Steel release
Product inquiry
